Hobbywing ESC Throttle Rate Control Pro Tuning Guide

Your Hobbywing throttle rate control and ESC settings can make or break your RC car. It may drain your battery faster and make your RC car harder to control. But if configured properly, you can maximize your performance potential and ultimately win races.

Thankfully, you don’t have to guess for the right rate control and settings, as we at the EuroRC racing team have tested numerous Hobbywing ESC configurations across various racing circuits.

This guide provides you with an essential Hobbywing settings breakdown with specific values and real-world applications, no theory or guesswork. Let’s begin!

Hobbywing Throttle Rate Control and Power Settings

Throttle rate control determines how quickly your ESC delivers power to the motor. Think of it as the "aggressiveness" of your throttle response. Get this wrong, and your car becomes unpredictable.

Before you proceed, acquainting yourself with what an ESC does and the ESC and motor choice helps you make better setup decisions from the start.

Throttle Rate Control Values

Low settings (10-20) give smooth, controlled power delivery. Your car accelerates gradually without sudden wheel spin. Use these settings on low-grip outdoor dirt tracks or when you're learning to drive faster.

Medium settings (20-25) provide a balanced response for most track conditions. This range works well for indoor carpet tracks and outdoor asphalt with moderate grip. Most drivers find their sweet spot here.

High settings (25-30) create aggressive, punchy acceleration. Your car responds instantly to throttle input. Use these on high-grip indoor tracks or when you need maximum acceleration out of corners.

Initial throttle force works together with throttle rate control. While throttle rate control affects the entire power curve, initial throttle force only impacts the first moment you press the trigger. Set the initial throttle force slightly lower than your throttle rate control for smooth launches.

For beginners, start with throttle rate control at 20. Increase gradually if you need more response. Decrease if your car feels too aggressive or spins the tires too much.

Familiarizing yourself with brushed vs brushless motors helps you choose the right throttle settings. Brushless systems typically need higher throttle rate control values than brushed setups. Browse our electric motors selection to find the perfect match for your setup.

Now that you know throttle rate control, let's look at how drive frequency works with it to shape your power delivery.

Drive Frequency and Softening

PWM drive frequency controls how the ESC sends power pulses to your motor. Lower frequencies (4K-8K) create a punchy feel but generate more heat. Higher frequencies (12K-16K) provide smooth operation and run cooler.

For racing, use 8K-12K for most conditions. For bashing or longer runtime, choose 12K-16K to keep temperatures down. Modified motors typically handle lower frequencies better than stock motors.

Hobbywing softening value makes the bottom end of your throttle milder. Set it to 0% when you need maximum bottom-end power on high-grip tracks. Use 15-25% on slippery surfaces to reduce wheel spin.

The softening range determines where the softening effect applies. Set it to 30-50% for most conditions. This means softening affects the first portion of your throttle input, then full power kicks in.

Hot ESCs need proper cooling. Check our guide on choosing the right fan for your Hobbywing ESC. Also, quality ESC accessories keep your system running reliably.

Hobbywing Timing and Turbo Configuration

Timing settings control when your motor receives power during its rotation cycle. More timing generally means more speed, but also more heat and battery consumption.

Turbo Timing Setup

Turbo timing adds extra degrees of timing only at full throttle. This increases top speed on straights without affecting corner exit power. Set turbo timing between 25-38 degrees, depending on your track.

For small indoor tracks, use 25-30 degrees. For large outdoor tracks with long straights, try 30-38 degrees. Stock motors typically need higher turbo timing values than modified motors to achieve similar performance.

Turbo delay prevents the turbo from activating instantly. Set it to 0.05-0.10 seconds for small tracks. Use 0.10-0.15 seconds for large tracks to avoid turbo activation in technical sections.

Increase and decrease rates control how fast the turbo timing engages and disengages. Slower rates provide smoother transitions. Faster rates give more aggressive top-end power but can make the car harder to control.

Proper motor selection affects timing performance. Read our choosing ESC and motor guide for detailed pairing advice.

Boost Timing Control

Boost timing adds extra timing across a specific RPM range, not just at full throttle. Use 3-5 degrees for small tracks and 8-10 degrees for large tracks where you need mid-range power.

RPM activation mode triggers a boost based on motor speed. AUTO mode activates boost based on throttle position. RPM mode works better for racing because it's more predictable and consistent.

Boost timing works with throttle rate control to shape your power delivery. Higher throttle rate control with moderate boost timing gives excellent corner exit performance without excessive wheel spin.

Premium ESC-motor combinations come pre-matched for optimal timing performance. This saves setup time and ensures compatibility.

Hobbywing Brake and Safety Settings

Brake settings control how your car slows down and stops. A poor brake setup makes your car unpredictable and can damage your drivetrain.

Brake Rate Control

Brake rate control adjusts how aggressively your brakes engage. Set it between 10-20% for most conditions. Lower values give smoother, more controllable braking. Higher values provide stronger, more aggressive braking.

The drag brake applies a constant braking force when you release the throttle. Use 10-15% for most indoor tracks and 5-10% for outdoor tracks where you want the car to coast more freely.

Linear brake control gives the most precise brake feel. It provides proportional braking based on trigger position. The traditional mode gives stronger initial braking but less fine control.

Your servo plays a crucial role in brake feel as well as steering precision. Learn how to choose a servo that matches your driving style.

BEC Voltage and Programming

BEC voltage powers your receiver and servo. Standard servos work best at 6.0V for consistent performance and reliability, while high-voltage servos can use 7.4V for increased speed and torque.

Stick with 6.0V unless you specifically bought high-voltage servos. Higher voltage doesn't always mean better performance, and it can damage standard servos.

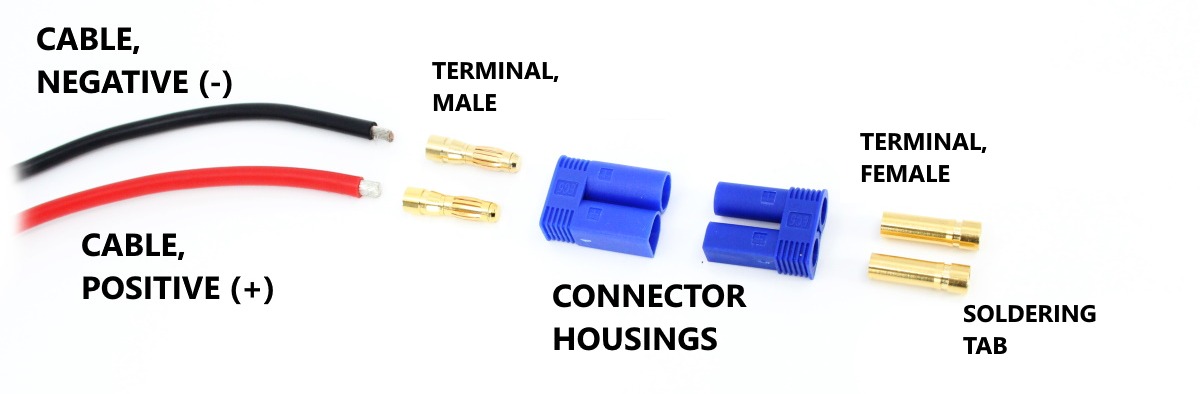

On the other hand, programming your ESC requires the right connections and tools. Get a good grasp of RC connectors before making changes. Poor connections cause programming errors and performance issues.

For permanent installations, proper soldering ensures reliable connections. Our soldering guide covers the basics safely and effectively. Proper battery connector installation also prevents power loss and overheating issues.

Download the detailed Hobbywing settings manual for complete technical specifications and advanced programming options.

Quick Settings Reference Guide

If you need proven settings that work right away, our racing team has compiled these tested configurations for different track conditions and racing classes. These may seem just random numbers to the uninitiated, but they're actually the result of real track testing and racing experience.

Recommended Starting Points by Track Type

Racing Class Guidelines

• Modified Class: Start with higher throttle rate control (25-30) and lower drive frequency (8K) for maximum performance. Use moderate turbo timing (25-30°) and adjust based on track length.
• Stock Class: Use moderate throttle rate control (20-25) and higher drive frequency (12K-16K) for reliability and temperature management. Higher turbo timing (30-38°) helps compensate for lower motor power.
• Emergency Backup Settings: When nothing works, try Throttle Rate 22, Drive Frequency 12K, Turbo Timing 30°, Drag Brake 12%, Softening 15%. These settings provide reliable performance on most track conditions.

To ensure that all these settings stay consistent during your race, you must choose the correct battery, since different battery types deliver power differently. Hence, understanding LiPo battery basics and battery chemistry differences helps you match your ESC settings to your power source.

For race day preparation, know how to use and charge LiPo batteries safely. The right batteries and chargers ensure consistent performance throughout your racing session.

On the other hand, proper charging techniques help balance performance requirements with runtime needs during longer races.

Hobbywing Throttle Rate Control FAQs

What happens if throttle rate control is set too high or too low?

Setting throttle rate control too high causes sudden throttle changes, leading to jerky acceleration and loss of control. Setting it too low makes throttle response sluggish, reducing power delivery and vehicle responsiveness.

How does throttle rate control affect battery life?

Throttle rate control affects battery life by controlling how quickly throttle inputs change. Smoother throttle transitions reduce current spikes, lowering battery stress and extending battery lifespan. Aggressive settings increase current draw, causing faster battery wear.

What's the difference between throttle rate control and throttle curve?

The main difference between throttle rate control and throttle curve is throttle rate control adjusts the speed of throttle input changes, while throttle curve shapes the overall throttle response to be linear or exponential throughout the input range.

Does throttle rate control reduce motor heat?

Throttle rate control can reduce motor heat by limiting rapid throttle changes that cause high current spikes. Smoother throttle adjustments decrease electrical stress on the motor, lowering overall operating temperatures during use.

Get the Most from Your Hobbywing ESC

Proper Hobbywing settings transform your RC car's performance. Start with throttle rate control as your foundation, then adjust other parameters based on track conditions.

Great equipment supports great settings. Browse our electronic speed controllers, brushless motors, and RC electronics for proven combinations. Our radio equipment upgrade guide helps you build a complete setup as well.

At EuroRC, we provide RC solutions backed by racing expertise. Just RC, no BS.

Original settings research by Michał Milan Milanowicz (Xray). Read the complete technical discussion for additional insights.
