Traxxas iD Connector Explained: Battery Adapter & Compatibility

If you've recently picked up a Traxxas RC car, you've probably noticed those chunky battery plugs and wondered what makes them different. Maybe you're trying to figure out if your old batteries will work, or you're frustrated that your existing charger doesn't seem compatible.

These are common questions, and the Traxxas iD system does create real confusion for hobbyists coming from other brands.

That's why this article exists: to clears up how iD connectors work, what makes them different from older TRX plugs, and how to charge iD batteries with non-Traxxas chargers, among other things. By the end, you'll (hopefully) know exactly what's compatible with what and whether the iD system fits your setup.

Let's begin by defining a Traxxas iD connector.

What Is a Traxxas iD Connector?

Pretty much since their early days, Traxxas has relied on their own battery connectors. Different from the traditional Tamiya-style Molex connector, TRX plugs have always been high-performance, low-resistance connectors built to handle serious abuse.

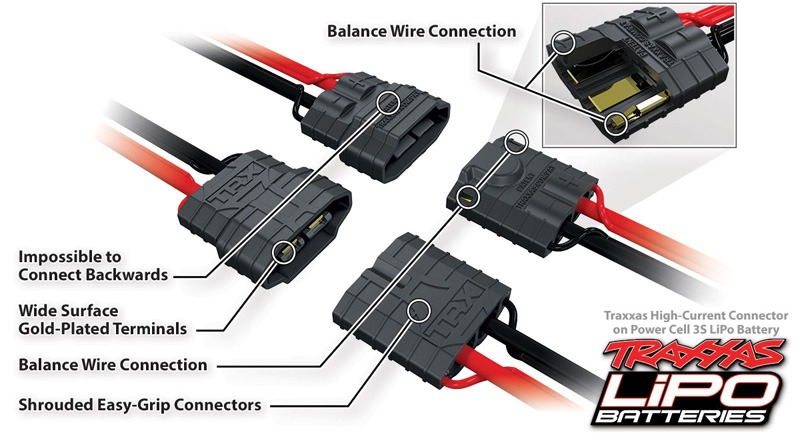

A Traxxas iD connector takes that a step further. It's a high-current battery plug that combines power delivery and balance charging into one connection. Traditional LiPo setups require two plugs when charging: a main power connector plus a separate JST-XH balance lead. The iD system eliminates that second plug entirely.

Whereas standard T-plug or tube-style connectors require you to additionally connect the balancer ports, the TRX iD plugs have built-in balancer connectors that mate with the output of Traxxas' own line of iD-capable EZ-Peak chargers. You only have to connect one plug to the charger instead of two or sometimes three.

When you connect an iD battery to an EZ-Peak charger, the charger auto-detects battery type (NiMH or LiPo) and cell count (2S, 3S, or 4S), then sets the charge rate automatically. No manual programming needed. The iD technology eliminates complicated charger settings by automatically configuring and optimizing everything for Traxxas iD batteries. For newer hobbyists who aren't comfortable programming charge settings manually, this removes a real source of anxiety (and potential battery damage).

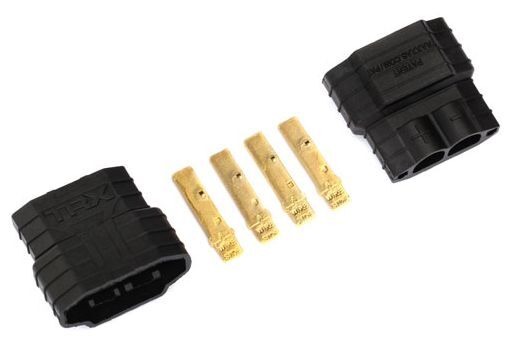

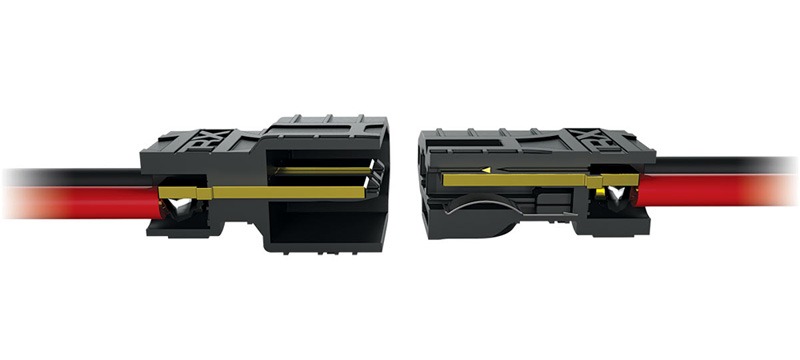

The hardware itself is built to last. Gold-plated copper terminals handle high-current applications without issue, which matters when you're running a brushless setup that pulls serious amps. The keyed housing only fits one way, so there's no risk of plugging the battery in backwards and frying your ESC. And the spring-loaded contact areas maintain consistent pressure over thousands of connect and disconnect cycles, so the connectors don't get loose and sloppy like cheaper plugs tend to after a season of use.

The trade-off is that you're locked into the Traxxas ecosystem for batteries and chargers, unless you use adapters. Speaking of which, let's talk about what actually works with what.

Traxxas iD Connector Compatibility

This is where most of the confusion lives. People want to know if their old gear works with new gear, and vice versa. The short answer is yes, mostly. But let's break it down properly.

Running iD Batteries in Older Vehicles

If you've got an older Traxxas vehicle from before the iD era, you can still run modern iD batteries in it without any issues. The power terminals are physically identical between iD and standard TRX connectors. Your Slash, Rustler, Stampede, or E-Revo doesn't care whether the battery has iD features or not. It just wants power, and the iD battery delivers that the same way older batteries did.

The iD-specific pins only communicate with compatible chargers. Your ESC ignores them completely.

Running Older Batteries in New Vehicles

This works too. If you've got a stash of older TRX batteries without iD, they'll run fine in any current Traxxas vehicle. The ESC doesn't require iD functionality to operate. Pop the battery in, plug it up, and go.

The only thing you lose is the convenience features when charging. Your older batteries still need a separate balance lead, and the charger won't auto-detect settings.

How to Charge iD Batteries with Any Charger

Maybe you already own a nice balance charger and don't want to buy a Traxxas EZ-Peak just for one brand of batteries. Totally reasonable. Here's how to make your existing charger work with iD batteries.

What You Need

The key piece is a Traxxas iD charging adapter. This small cable splits the iD connector into two separate outputs: a standard TRX power plug and a JST-XH balance lead. With those separated, any balance charger can handle the battery.

You'll also need a TRX charge lead for your specific charger, or an adapter from TRX to whatever connector your charger uses (XT60, banana plugs, etc.).

Step-by-Step Process

1. Connect the iD adapter to your battery
2. Plug the TRX power lead into your charger's output
3. Connect the JST-XH balance lead to the appropriate balance port (2S, 3S, or 4S)
4. Manually select battery type (LiPo or NiMH) on your charger
5. Set the cell count to match your battery
6. Choose your charge rate and start charging

It takes about 30 seconds longer than plugging into an EZ-Peak, but it works perfectly fine.

Recommended Charge Rates

For Traxxas Power Cell LiPo batteries, a 1C charge rate is safe and keeps the cells healthy long-term. That means:

• 2S 5800mAh: charge at 5.8A
• 3S 5000mAh: charge at 5.0A
• 4S 6700mAh: charge at 6.7A

You can push to 2C if you're in a hurry, but regular fast charging does reduce battery lifespan over time. For more details on LiPo care, check out our article on how to use and charge LiPo batteries.

Now that charging is sorted, let's see how iD connectors stack up against other options on the market.

Traxxas iD vs. Other Connectors

If you run multiple RC brands or race competitively, you've probably wondered whether sticking with Traxxas connectors makes sense. Here's how iD compares to the most common alternatives.

Feature	Traxxas iD	Deans (T-Plug)	XT60	EC5
Integrated balance leads	Yes	No	No	No
Auto-detect charging	Yes	No	No	No
Current capacity	High	60A	60A	120A
Cross-brand compatibility	Low	High	High	Medium
Soldering required	No	Yes	Yes	Yes

Current ratings reflect commonly cited continuous amp specifications. Actual performance varies by connector quality and manufacturer.

When to Stick with iD

If you run exclusively Traxxas vehicles and value convenience over flexibility, the iD system makes life easier. Plug in, charge, go. No settings to configure, no balance leads to fumble with. For casual bashers and families with multiple Traxxas trucks, it's genuinely useful.

When to Consider Switching

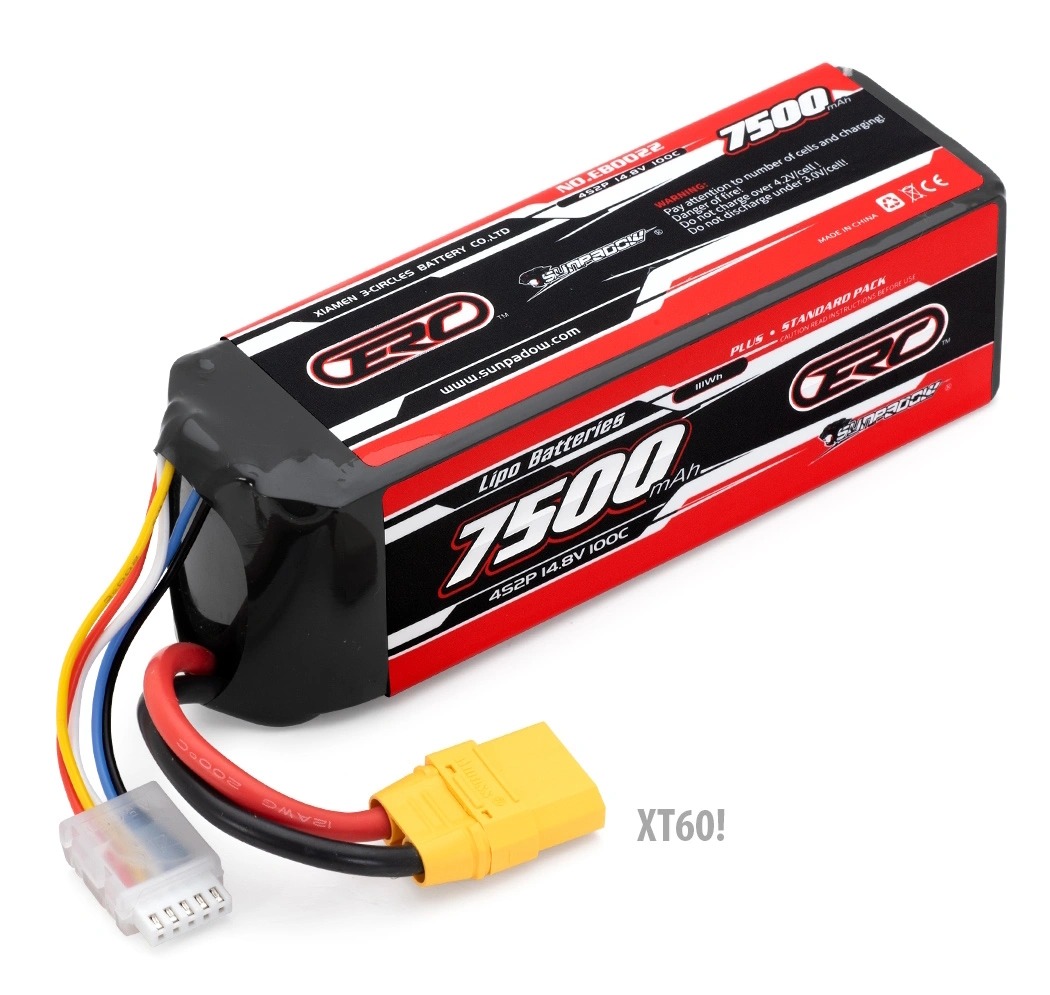

If you race or run vehicles from multiple brands, a universal connector like XT60 or Deans simplifies your setup. One charger, one connector type, no adapters. The trade-off is losing the auto-detect feature and needing to solder your own connectors.

Keep in mind that cutting the iD connector off your Traxxas ESC voids your warranty. If you want to run third-party batteries without soldering, adapters are the safer route.

For a deeper look at connector options, check out our RC connectors explained article.

Even the best connectors need maintenance, so let's cover some common issues you might run into.

Common Issues and Troubleshooting

iD connectors are built tough, but they're not immune to wear and tear. Here's how to spot problems early and fix them before they leave you stranded at the track.

Charging Mistakes

The biggest issue when using a third-party charger? Forgetting to connect the balance lead. Your charger might still charge the battery through the main power lead alone, but without balancing, individual cells can drift out of sync. That's bad for performance and potentially dangerous.

Also, double-check your cell count setting. A 3S battery set to 2S mode won't charge properly, and a 2S battery set to 3S mode could overcharge and puff.

Loose or Intermittent Connections

If your vehicle cuts out randomly or loses power under hard acceleration, the connector might be worn. Over time, the spring-loaded terminals can lose tension, especially if you're plugging and unplugging frequently.

Try wiggling the connection gently while the car is powered on. If the power flickers, you've found your culprit. Replacement connectors are available, though soldering is required.

Oxidized or Dirty Terminals

Black or greenish buildup on the gold terminals means oxidation. This increases resistance and can cause heat buildup during high-current draws. Clean the terminals with a bit of isopropyl alcohol and a cotton swab. For stubborn oxidation, a pencil eraser works surprisingly well to polish the contacts.

Adapter Fit Issues

Some third-party adapters don't seat as snugly as genuine Traxxas connectors. If your adapter feels loose or pops out easily, check that you're using the correct type. There are subtle differences between 2S, 3S, and 4S adapters, and using the wrong one can cause poor contact.

With maintenance covered, let's wrap up with a few frequently asked questions.

Frequently Asked Questions

Will cutting the iD connector off my ESC void my Traxxas warranty?

Yes. Traxxas considers any modification to the ESC wiring a warranty-voiding change. If you want to run third-party batteries, use an adapter instead of soldering new connectors.

Can I charge both NiMH and LiPo batteries with the same iD charger?

Yes. EZ-Peak iD chargers auto-detect battery chemistry and cell count, so they handle both types without you changing any settings. Just plug in and the charger figures out the rest.

Are there iD adapters for 4S batteries?

Yes. Adapters are available for 2S, 3S, and 4S configurations. Make sure you get the right one for your battery, since the balance lead pinout differs by cell count.

Where can I buy a Traxxas iD charging adapter?

EuroRC stocks iD charging adapters that split the iD connector into a standard TRX power lead and JST-XH balance connector. This lets you charge on any balance charger.
