Tamiya Tyrrell P34 Six Wheeler 1977 Argentine GP - KIT TAM-47486

Hit for Six

1976 saw the dawn of the P34, Tyrrell's wonderfully inventive six-wheeled car with four smaller front wheels, that backed up its looks with solid results such as an impressive one-two finish for the team at the 1976 Swedish GP. At the 1977 season-opening Argentine GP, the P34 had a fully-cowled body adorned with a blue and white livery and First National City bank as a sponsor; that car is recreated by this 1/10 scale R/C model assembly kit. The body is injection molded in detailed yet durable plastic, with upper cowl sections molded in white and side pontoons in blue. Stickers are included for depiction of either of Peterson's number 3 or Depailler's number 4 cars, complete with Goodyear tire logos - just apply the stickers, and the body is ready!

Special 6-Wheeled F103 Chassis

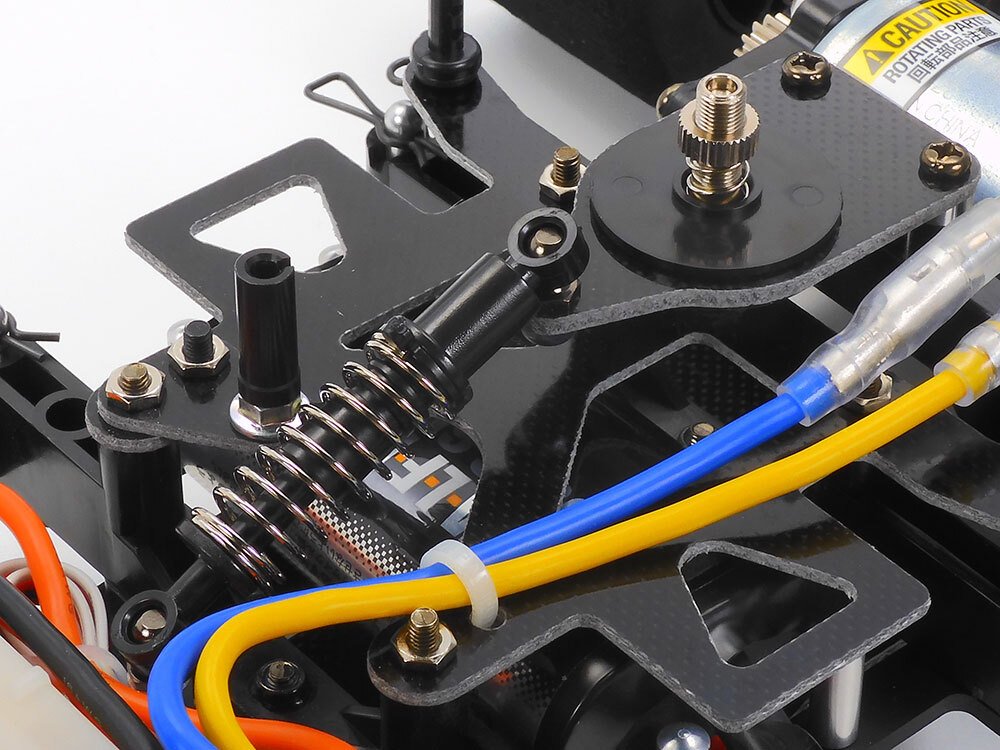

The high performance direct drive 2WD chassis utilizes a semi double deck frame with 1.5mm thick upper and 2.5mm thick lower FRP plates. Kingpin coil spring 4-wheel independent front suspension consists of the one-piece lower arm and individual left/right upper arms. One servo controls the steering of all four front wheels. The rear suspension features a rigid T-bar with coil spring and low-friction pads. The spur gear has a built-in ball diff for limited slip effect. Grippy sponge tires masterfully harness the power provided by the motor.

About the Model

• This is a 1/10 scale R/C model assembly kit. Length: 435mm, width: 104mm, height: 206mm.
• The “six-wheeler’’ full cowl body injection molded in white and blue realistically depicts the Tyrrell P34 1977 Argentine GP version.
• Side mirrors are to be painted red based on the actual car.
• Marking instructions are changed from the ones of Item 49154 and Item 58003.
• The 6-wheel F103 chassis is equipped with friction dampers and facilitates high-speed running despite of 2WD simple structure.

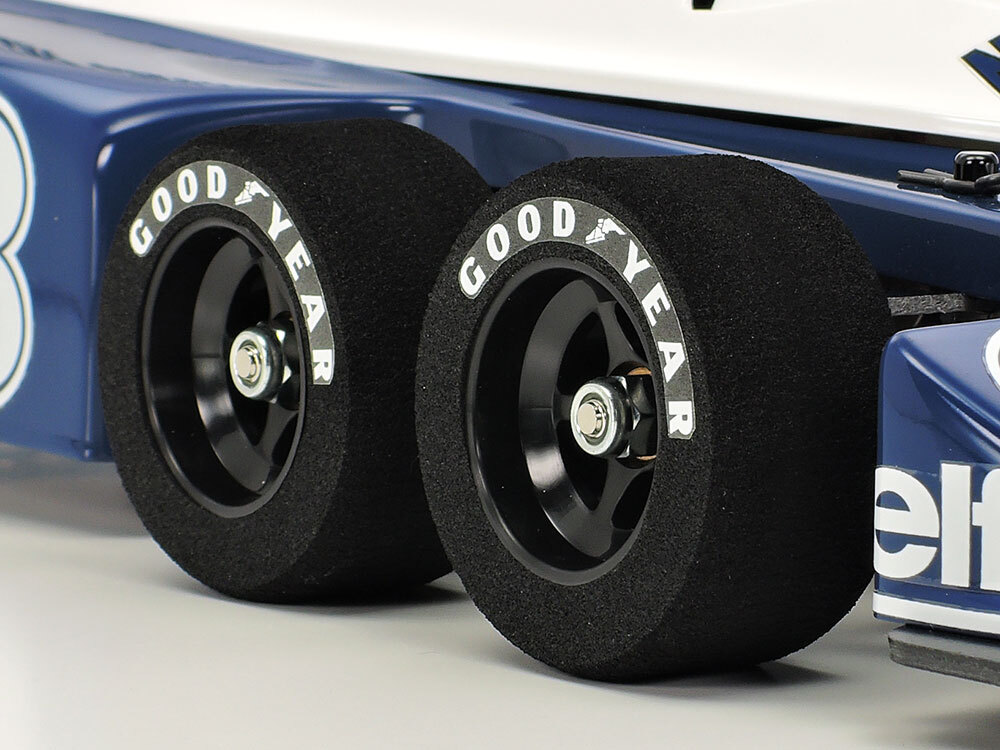

• Small front and large rear tires are high-grip sponge.
• RS-540 Sports Tuned Motor (Item 53068) is included.

Specifications

• Length: 433mm
• Width: 200mm
• Height: 108mm
• Tread: 140mm (front), 155mm (rear)
• Tire width/diameter: 23/44mm (front), 45/64mm (rear)
• FRP semi-double deck frame
• Direct drive RWD
• Ball differential
• 2-piece steering tie-rod
• Suspension: front king pin coil spring, rear T-bar rigid
• Gear ratio = 4.5:1 (using 14T pinion/63T spur combination)
• Type 540 Motor
• Please note! Electronic Speed Controller is not included!

Needed to complete:

• Electronic Speed Controller for brushed motors (Find ESC here)
• 2-Channel radio with receiver (Find Radios here)
• Steering servo: Halko Turner 1.0 WP (More Servos here)
• 7.2volt battery pack: Nimh pack with Tamiya connector

• Compatible charger (Find Chargers here)
• Paint for the body
