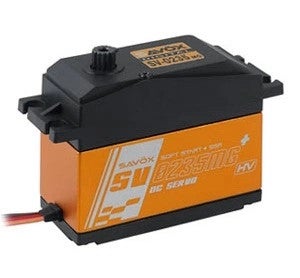

Savox SV-0235MG Plus Servo 35Kg 0,15s HV Alu Metal Gear Giant SAV-SV0235MGPLUS
- Product code
- SAV-SV0235MGPLUS
- VAT
- 21%
- Availability
- 1 pcs
- UPS Standard
- 8,90 €
- Standard and reliable shipping with tracking from UPS. Delivered to your door in a few days.
- UPS Express Saver
- 12,90 €
- Fast express shipping option. Delivered in a 1-2 business days with tracking and flexible delivery options.
- GLS Euro Business Parcel
- 11,90 €
- Standard economy shipping with tracking and flexible delivery options. Delivery in most times in a week.
- GLS Euro Business LQ Parcel - Spray
- 23,90 €
- Standard shipping option for Spray paints to all over european mainland. Courier picks up these shipments once a week every Monday which means that this option is always "next week delivery".
Best RC products
Express shipping options
Over 90% of our customers have recommended us to their friends
Compatible products
- Operating Voltage
- 7.4v HV
- 6v
- Size
- Large
- Waterproof
- No
- Bore
- 15T - Large
- Vehicle Type
- 1:5
- Gears
SAVÖX SV-0235MGPLUS - Metal-Geared Giant-Scale High Voltage Servo
The SW0235MG Plus is a metal-geared, and digital servo. It is a fast large scale servo and capable of operating on high voltage.
Features:
- Soft Start
- SSR compatible
- High Voltage
- Ideal for 1/5 scale off road and large scale aircraft applications
- Strong metal gear train for added durability
- Good torque and speed for a nice balance
Specifications:
- Torque @6V: 28kg/cm
- Torque @7.4V: 35kg/cm
- Speed @6V: 0.18 sec/60 deg
- Speed @7.4V: 0.15 sec/60 deg
- Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
- Weight: 200g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 150mA @6.0V, 180mA @7.4V
- Stall Current (at locked): 7500mA @6.0V, 9000mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 15 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
