Traxxas Rustler 4x4 Brushless 2S RTR - Campaign

ERC Recommendations:

• Recommended for beginners (Training mode)
• Suitable for All terrain
• Waterproof
• Top speed about 50km / h
• Required for operation: Battery, charger & batteries for the controller

A New Breed of Stadium Truck
Rustler® 4X4 is the definitive go-to machine for speed, agility, and unstoppable 4WD traction. Beneath the reinforced clipless body, Rustler’s chassis sits low and wide for increased stability and sharp handling. Rustler’s all-new BL-2s™ brushless power system delivers effortless power for all-day fun with an added boost of torque for 4-wheel burnouts and lightning-fast acceleration. Additionally, Rustler 4X4 now comes standard with Traxxas’ Extreme Heavy Duty Upgrade Kit to become the new standard for strength and durability.

New BL-2s Brushless Power System
Rustler 4X4’s BL-2s brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Rustler 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 kV is long-lasting and requires virtually no maintenance.

Extreme Heavy Duty Upgrade Kit
Rustler 4X4’s pre-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD suspension arms to the steel wheel hubs, this is the strongest driveline ever offered in a Rustler.

New Clipless Body Mounting
Rustler 4X4 uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. The sleek, aerodynamic body features a rugged internal structure and external rollover protection for long life and Traxxas-ToughTM durability.

Vehicle Specs:

• Length: 457mm
• Front Track: 329mm
• Rear Track: 329mm
• Ground Clearance: 27mm (center)
• Weight (no battery): 2.33kg
• Height (overall): 161mm
• Wheelbase: 295mm
• Shock Length (front): 88mm - Long
• Shock Length (rear): 101mm - XX-Long
• Speed Control: BL-2s™ electronic speed control
• Motor (electric): BL-2s™ 3300 kV sensorless brushless
• Overall Drive Ratio: 12.81:1
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32
• Chassis Structure/Material: Composite tub
• Drive System: Shaft-driven 4WD

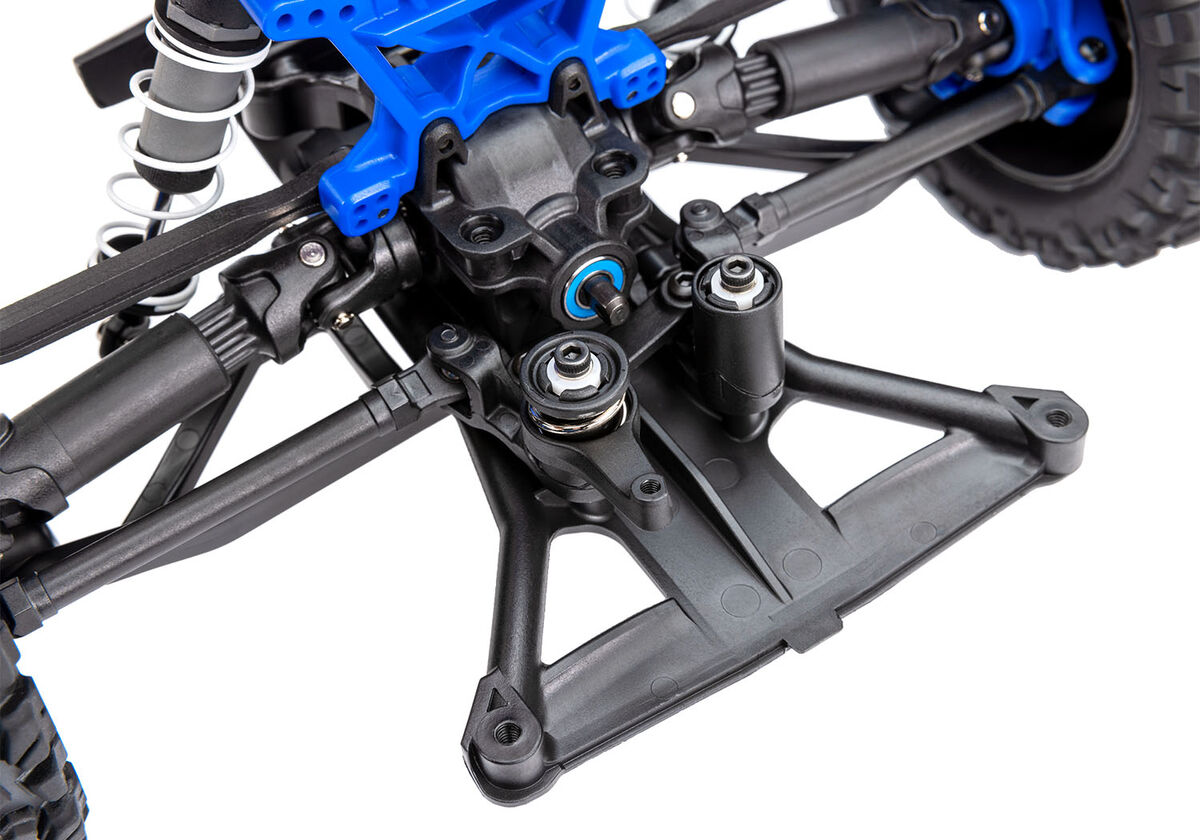

• Steering: Dual-bellcrank with integrated servo saver
• Tires: Talon™ EXT with foam inserts
• Tire Diameter: 114mm (front and rear)
• Wheels (front/rear): 2.8″ Gray RXT wheels
• Wheel Diameter: 2.8 inches (71mm)
• Radio System: TQ™ 2.4GHz (2-Channel)
• Servo: Waterproof digital #2056 servo (80oz-in torque)
• Skill Level: 1
• Battery Compartment (L/W/H): 162x50x25mm
• Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)

Motor Specs:

• Type: BL-2s 3300kV sensorless brushless motor
• Weight: 213g
• Length: 80mm
• Diameter: 36mm
• Connector Type: Traxxas Quick Connect Motor Plug

ESC Specs:

• Input Voltage (cells): 6-7 Cells NiMH / 2S LiPo
• Weight: 87g
• BEC Voltage: 6V
• Reverse Delay: Yes, with lockout
• Thermal Protection: Two-stage thermal shutdown
• Ports: Auxiliary fan

Three Programmable Drive Profiles:

• Sport Mode: Forward / Brake / Reverse
• Race Mode: Forward / Brake
• Training Mode™: 50% Forward / Brake / 50% Reverse (patented)

What’s In The Box:

• Rustler 4X4 with BL-2s ESC and 3300 kV motor
• Quick Start Guide
• TQ™ 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries: 8.4V NiMH or 2S LiPo battery
• Charger: Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
