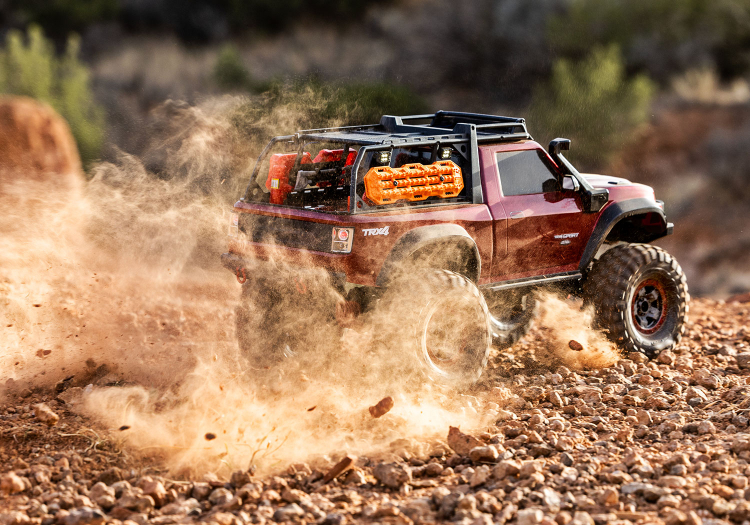

Traxxas TRX-4 Sport Scale Crawler High Trail Truck 1/10 RTR

ERC Recommendations:

• Recommended for beginners
• Suitable for Off-road driving
• Waterproof
• Top speed about 20km/h
• Required for operation: Battery, charger & Batteries for controller

Outfitted for Adventure

Even the toughest off-road challenges have met their match with TRX-4® Sport High Trail™ Edition. A factory-installed Long Arm Lift Kit amplifies TRX-4 Sport’s performance-focused all-terrain capability with even more ground clearance. High-angle bumpers and fully-locked axles provide nearly unstoppable climbing versatility with the show-stopping looks of the High Trail Edition’s rugged Expedition Rack and scale accessories.

Lifted Performance

The High Trail Edition TRX-4 Sport gets you up and over obstacles with a factory-installed Long Arm Lift Kit for over an inch more ground clearance than the standard TRX-4. Oversize Canyon Trail tires ride on 2.2″ black 5-spoke wheels to tame the most technical trails with extreme all-terrain traction.

Clipless Body Mounting
The clipless body’s hidden latching system gives K5 Blazer High Trail Edition clean, flowing lines for new level of scale realism and convenience. On the trail, K5 Blazer’s clipless body holds tight when you need it, but releases in just seconds to access the chassis.

Scale Accessories
TRX-4 High Trail Edition comes fully outfitted for adventure with a tough Expedition Rack and molded accessories. A replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and fuel canisters provide extreme scale detail with inner fenders for a realistic appearance.

Cruise Control The Traxxas TQi radio system is equipped with cruise control for long-distance treks. Set your speed using the transmitter and then use the multi-function knob to fine-tune it faster or slower to precisely match the pace of your caravan of trail explorers. Cruise control makes it easy and comfortable for the TRX-4 Scale and Trail Crawler to be your companion for hours of driving fun and exploration.

3S Power System The new XL-5 HV electronic speed control brings 3S LiPo capability for stronger, more efficient running. New speed control profiles have been added for smooth and precise control. A new Trail profile facilitates smooth driving for most of your adventures, while a new Crawl profile introduces hill hold and instant reverse for extremely technical courses. Either will help you navigate obstacles with ease, right from the start. Long run times, up to 2 hours, are possible with a Traxxas 3S 5000mAh iD LiPo battery pack!

The 2.2" Canyon Trail tires and tuned foam inserts are super-soft and grippy to deliver superior bite on rocky surfaces with convincing scale realism. The 12 mm steel hex drive makes the TRX-4 chassis compatible with popular 1.9-2.2" wheel and tire combinations.

Traxxas Tough Leave the tools in the bag! The Traxxas TRX-4 chassis is built to handle the rigors of remote locations and all-day driving fun. The foundation begins with a pair of 1.5 mm thick steel frame rails. Large diameter steel links and heavy-duty, extra-wide rod ends keep the suspension firmly mounted. Hardened steel CV-style half-shaft joints are ultra reliable, while the brushless-ready steel portal axle and transfer case gears are smooth and quiet. Traxxas’ composite materials have been refined over three decades for the ultimate in strength and durability.

Aluminum GTS Shocks All new oil-filled coil-over GTS shocks were created exclusively for the TRX-4 chassis. These silver-anodized aluminum units deliver silky-smooth damping performance and feature threaded shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better with an O-ring cap seal and dual X-ring shaft seals.

Specs:

• Length: 564mm
• Front Track: 270mm
• Rear Track: 270mm
• Center Ground Clearance: 99mm
• Weight (w/o battery): 3.20kg
• Height (overall): 275mm
• Wheelbase: 312mm
• Approach Angle: 62.8°
• Departure Angle: 54.7°
• Breakover Angle: 79.3°
• Front Shock Length: 110mm
• Rear Shock Length: 110mm
• Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
• Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
• Front Tires: 5.3 x 2.14 inches (135 x 54mm)
• Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
• Hex Size: 12mm
• Speed Control: XL-5 HV
• Motor (electric): 21T Reverse Rotation
• Transmission: Single Speed
• Gear Pitch: 32P
• Differential Type: Spool (no differential)
• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft Driven 4WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQ™ 2.4 GHz 4-Channel Transmitter
• Receiver: 6533
• Skill Level: 1
• Battery Tray: L158.75 x W47 x H23/26mm

What You’ll Need:

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
• Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
