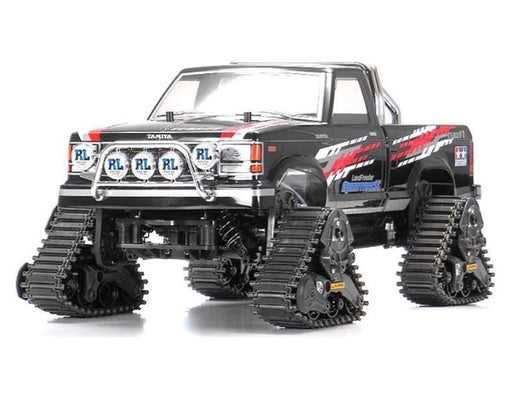

Tamiya 1:10 Landfreeder Quadtrack (TT-02FT) - KIT TAM-58690

On the Right Track

This assembly kit creates an R/C model off-road truck which shows high performance on poor surfaces. Its chassis is based upon the TT-02 shaft-driven 4WD unit, with superlative traction from its four individual tracks that helps it plow through snow, sand, mud and other testing conditions.

Its 1980s pick-up truck style body is molded in polycarbonate, with fog lamps, grille guard and roll bar recreated using separate metal-plated parts. A polycarbonate chassis cover and wheel well liners help prevent dirt and the like from getting into the chassis and potentially causing damage.

Tracked 4WD Fun: the TT-02FT Chassis

The TT-02FT chassis uses the shaft-driven TT-02 as a base, with track units in place of the four wheels. Each of the track units is attached to upper and lower suspension arms, and is powered via a drive sprocket that attached to the chassis drive shaft; they swing to allow superior contact with the running surface, and feature a sprung roller to allow easier negotiation of smaller obstacles. Plenty of ground clearance is on offer, too. Tracks are a plastic assembly type design with metal link pins, and give minimal power loss from friction for a smooth drive, even at lower speeds. Two types of link are included in the kit - standard, and jutting grouser designs - and can be used in tandem to customize your model's grip. The chassis features a CR-Tuned motor as standard.

Balanced shaft-driven 4WD is on offer thanks to the chassis' TT-02 base, with track units in place of tires.

Track units are attached to the chassis drive shaft via a drive sprocket, and use eight individual rollers.

Track units can also swing to help them maintain contact with the surface and give your model vital grip.

The third roller in each track unit is sprung, allowing the unit as a whole to adapt to obstacles underfoot.

2 link types are included - grouser and standard. Use them in the patterns shown for varying grip levels.

Specifications:

• Length: 425mm, Width: 247mm, Height: 199mm
• Wheelbase: 251mm　
• Surface contact: 60mm/track
• Track width: 39mm
• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• CR-Tuned 540 Motor included
• Please note! Electronic Speed Control is not included!
• Pre-Painted body included

Required Items:

• Electronic Speed Control for brushed motors (Find ESC here)
• 2-Channel radio with receiver (Find Radios here)
• Steering servo: Halko Turner 1.0 WP (More Servos here)
• 7.2volt battery pack: Nimh pack with Tamiya connector

• Compatible charger ( Find Chargers here)
• Tools
• Paint for the body
