Hobbywing XeRun Axe Brushless R2-FOC Sensored BL Motor
- VAT
- 21%
- UPS Standard
- 8,90 €
- Standard and reliable shipping with tracking from UPS. Delivered to your door in a few days.
- UPS Express Saver
- 12,90 €
- Fast express shipping option. Delivered in a 1-2 business days with tracking and flexible delivery options.
- GLS Euro Business Parcel
- 12,90 €
- Standard economy shipping with tracking and flexible delivery options. Delivery in most times in a week.
- GLS Euro Business LQ Parcel - Spray
- 23,90 €
- Standard shipping option for Spray paints to all over european mainland. Courier picks up these shipments once a week every Monday which means that this option is always "next week delivery".
- Scale Class
- 1:10
- Operating Voltage
- 7,4v - 2S
- 11.1v-3S
- Axle
- 3.175mm
- Diameter
- 36-39mm
- Length
- 57-59mm
- Wires
- Integrated
- Sensor
- Yes

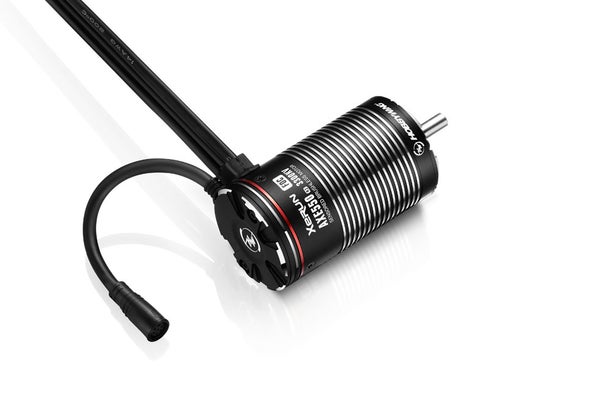

Hobbywing XeRun Axe Brushless FOC Sensored Motor for Rock Crawlers
The Xerun AXE 540 motor now shines with its "R2" design and also comes with some improvements. Furthermore, the motor supports the powerful FOC technology when used with the AXE "R2" ESC. That alone ensures automatic control of torque and speed - depending on the load requirements.
With a 3.175mm shaft and 1400KV, this 4-pole motor also has hardly any cogging torque and thus runs smoothly under all conditions. The "Staggered Pole Rotor" design patented by Hobbywing also contributes to this.
Applicable to All Weather & Track Conditions
Waterproof has been taken to a new level with the Axe System. Completely sealed ESC design with robust heatsink case design ensure the ESC is ready for anything you throw at it. The motor as well, is sealed, and combines a completely new sensor harness. No messy extra steps to make your system water proof.
Built-in High-precision Magnetic Encoder
A high precision magnetic encoder is used in the motor to ensure precision and consistent information is provided to the ESC. This allows the ESC to have more information from the motor than standard “hall” type sensors and provides improved performance and efficiency.
Low Cogging Torque
The AXE R2 Motors have the extremely low cogging effect and torque pulsation.
New Waterproof Sensor Port
The brand new design of new waterproof sensor port has smaller size. Its wiring is simpler and more beautiful than AXR R1 system.
Available in Different Sizes & KVs
Four AXE R2 motors, 540L R2-size 1400KV/2100KV/2800KV & 550-size 3300KV, are applicable to various rock crawlers.
Features:
- Minimal cogging torque
- Soft starting behaviour
- Optimized for sensitive performance development
- Waterproof and dustproof for almost every situation
- Including a newly designed waterproof sensor port
- The built-in high-precision magnetic encoder sends more information to the ESC than before
Specifications:
- 1/10-1/8th FOC brushless motor (Patented)
- Waterproof
- Motor Diameter: 36.0mm(1.42in)
- Length (mm): 57.8mm(2.28in)
- Shaft Diameter: 3.175(0.125in)
- Pole: 4
