Hobbywing XeRun Axe Brushless 550 Sensored Motor
- VAT
- 21%
- UPS Standard
- 8,90 €
- Standard and reliable shipping with tracking from UPS. Delivered to your door in a few days.
- UPS Express Saver
- 12,90 €
- Fast express shipping option. Delivered in a 1-2 business days with tracking and flexible delivery options.
- GLS Euro Business Parcel
- 12,90 €
- Standard economy shipping with tracking and flexible delivery options. Delivery in most times in a week.
- GLS Euro Business LQ Parcel - Spray
- 23,90 €
- Standard shipping option for Spray paints to all over european mainland. Courier picks up these shipments once a week every Monday which means that this option is always "next week delivery".
- Scale Class
- 1:10
- Operating Voltage
- 7,4v - 2S
- 11.1v-3S
- Axle
- 5mm
- Diameter
- 36-39mm
- Length
- 63-67mm
- Wires
- Integrated
- Sensor
- Yes

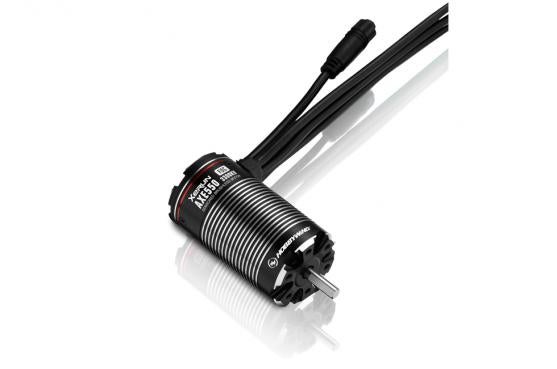

Hobbywing XeRun Axe Brushless 550 Sensored Motor
The new Axe motor not only has a new sensor design, but compared to other rock crawler design motors uses an improved staggered pole rotor design. What does this mean? Smoother operation with no cogging, and very clean and consistent deceleration. Smoother brakes, smoother power, and transitions between each are improved. This is specific to trail and rock crawling and allows extremely precise throttle control under any load conditions.
Applicable to All Weather & Track Conditions
The IP-67 waterproof has been taken to a new level with the AXE System. Completely sealed ESC design with robust heatsink case design ensure the ESC is ready for anything you throw at it. The motor as well, is sealed, and combines a completely new sensor harness. No messy extra steps to make your system water proof.
High Driving Efficiency for Long Battery Life
Extremely efficient design comes from the combination of new methods. The FOC sensors provided significant improvements to overall motor performance when compared to standard brushless setups. Runtime is increased dramatically while maintaining exceptional levels of power and response.

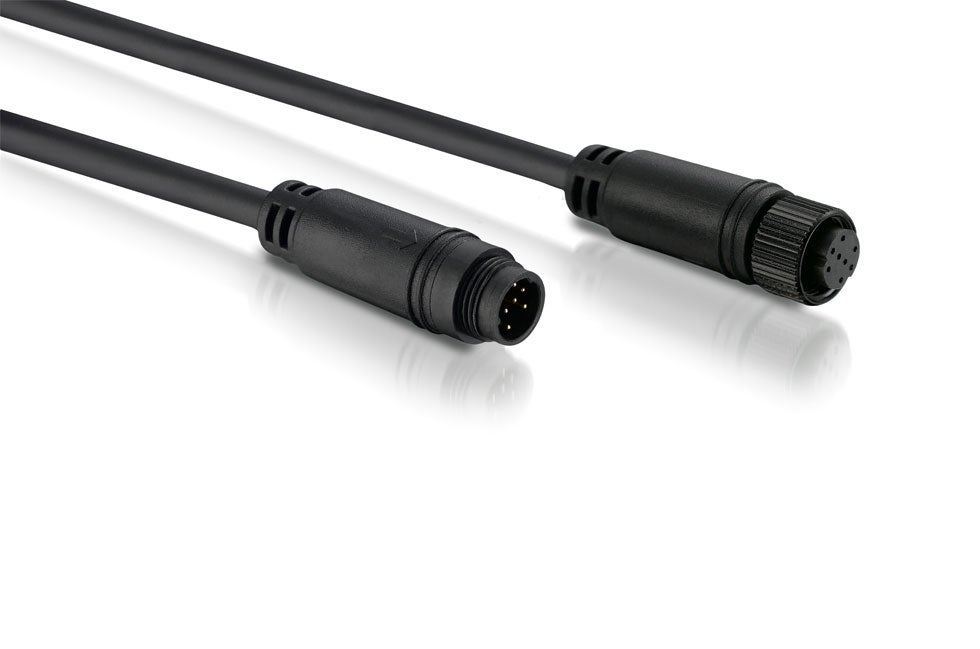

Innovative Sensor Port An all new sensor harness is more than just water proof, and will take on all element from water to mud and dirt/dust. No need for anything extra, o-ring sealed, and uses a screw together design to ensure it won’t come loose.
Built-in High-precision Magnetic Encoder
A high precision magnetic encoder is used in the motor to ensure precision and consistent information is provided to the ESC. This allows the ESC to have more information from the motor than standard “hall” type sensors and provides improved performance and efficiency.
Available in Different Sizes & KVs
Five Axe motors, 540-size 1200KV / 1800KV / 2300KV & 550-size 2700KV / 3300KV are applicable to various rock crawlers.
Specifications:
- Scale: 1/10
- Brushless: Yes
- Sensored: Yes
- Pole Count: 4
- KV Rating: 2700 or 3300
- LiPo Cells: 2-3S
Size:
- O.D: 36 mm
- Lenght: 66.2 mm
- Shaft Diameter: 5 mm
- Weight: 289g (2700KV), 284g (3300KV)
