Esc & Motor For Large scale 1:8 – 1:5 Cars
Ezrun MAX6 & Ezrun 5687SL 1100KV Brushless Motor Combo
This ESC is applicable to various 1:6th & 1:7th scale vehicles like the Traxxas XO-1 and also suitable to various 1:8th scale heavy vehicles like the Monsters. It’s the Ideal Option for high-end aggressively powered builds.

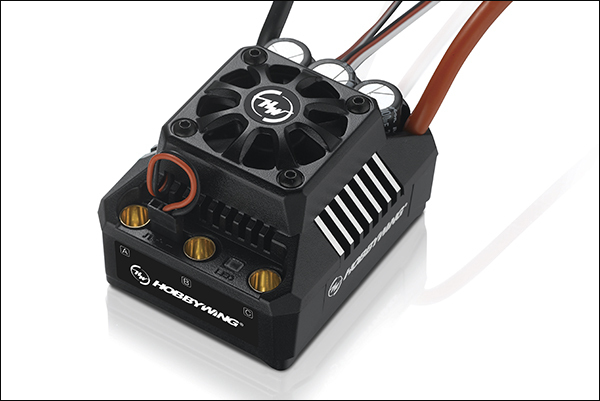

MAX6 ESC specification:
Cont./Peak Current: 160A/1050A
Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
Applications: 1/6th Touring Car, Buggy, Truggy and Truck
Motor Limit:
With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor)
With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Connectors: Input End: No, Output End: Female 6.5mm Gold Connectors (pr e-soldered onto the PCB of the speed contr oller).
Size/Weight: 70(L)x56(W)x46.5(H)/240g
Programming Port: FAN /PRG Port

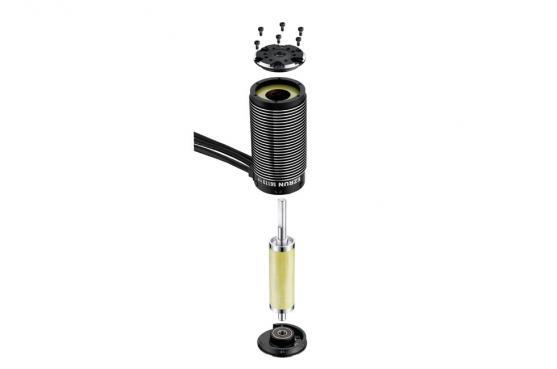

1100KV Motor Specifications:
KV Rating: 1100KV
LiPo Cells: 3-8S
No-load Current (A): 4.1
Timing: 0
Size:
O.D: 56 mm
Length: 87 mm
Shaft Diameter: 8 mm
Weight: 916 g
Applications: 1/6th & 1/7th RC Vechiles
